無塵操作台

無塵操作台 Laminar Flow | 尚上儀器

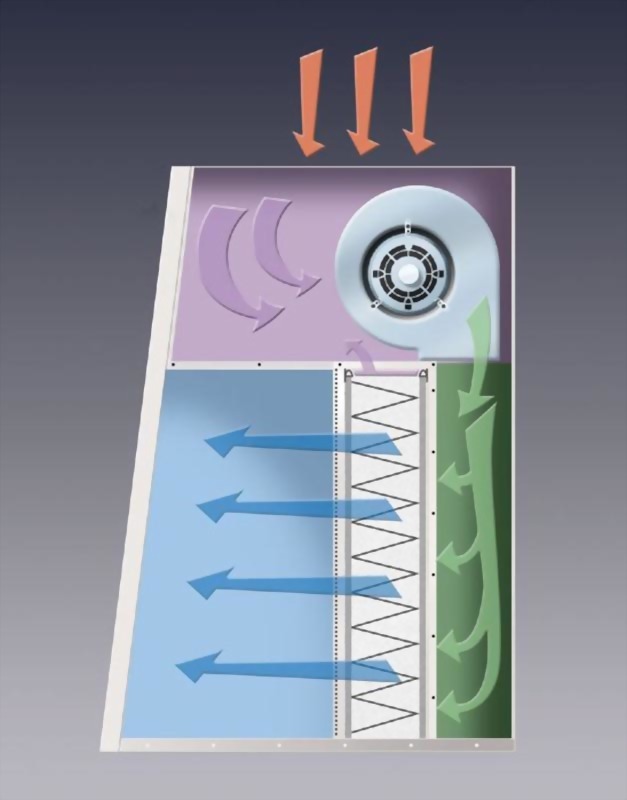

1. Horizontal laminar flow

2. Supply HEPA filter, 99.99% efficient on particles 0.3 micron (2 each on 8' models)

3. Double-gasket, negative pressure HEPA filter leak protection

4. ISO Class 5 air (formerly Class 100 per Federal Standard 209E)

5. Disposable prefilters (2 each on 3' and 4' models; 3 each on 6' models; 4 each on 8' models)

6. Variable speed built-in motor/blower(s) with vibration isolation pads

7. Differential pressure gauge

8. Type 304 brushed stainless steel work surface

9. Tempered safety glass side panels with utility ports with iris openings

10. UV-resistant, dry powder epoxy-coated steel exterior

11. Fluorescent lighting

12. Front-mounted light and blower switches

13. ETL Listing (115 volt, 60 Hz models)

1. Weight metric: 206.0 kg

2. Dimensions metric: 127.0 x 86.4 x 122.9 cm

3. Laminar Flow: Horizontal

4. Nominal Width: 4'

5. Conformance: ETL

6. Power Cord & Plug: 115 volts, 15 amps
